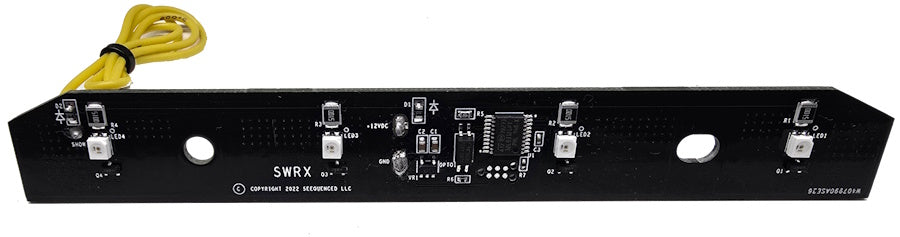

Installation of the Plug-N-Play CIRCUIT BOARD ONLY is a VERY easy install. Less than 20mins and only a few common tools are required.
Please watch the video bellow for the installation process. Its simple and we are here to help if you need assistance!
Unit ships pre-programmed with two patterns of your choice, BRAKE and SHOW.
BRAKE = this pattern is activated upon hitting the brakes. This pattern will run for 3 seconds and then ALL the LEDs will come on solid until you let off the brake.
SHOW = this pattern is activated when the "show" wire on the back of the light is connected to any 12V+ source, this can be done using our Show Mode Easy Install Kit (sold separately), a switch at your dash or connected directly to your vehicles tail/running lights. Connection must be 12V POSITIVE. If the SHOW mode is on, and you hit the brake, the BRAKE pattern will always override the SHOW pattern for as long as the brake is held down. The SHOW pattern will resume once the brake is released (if you have the SHOW mode on). The SHOW pattern is a continuous sequence.
Ask us about our DYNAMIC brake pattern options! garrett@seequenced.com or text 706-741-4949
Scroll through the images above and choose from the pattern list. Have a CUSTOM pattern idea? Please reach out to us and we will work with you on creating your custom pattern(s) at no additional charge!
